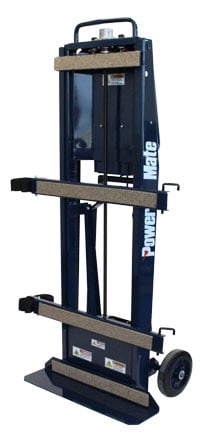

LP2016_0713_130712



PowerMate Model M-1

  • Fully Automatic Braking System
  • Override Clutch
  • Drive Screw Top Guard
  • Rugged Steel Outer Frame Carries Load
  • Machine 27"W x 17"D x 60" High
  • Machine Weight 165 lbs.
  • Heavy Duty Control Switches
  • Two Adjustable Strapbars 26" Length
  • Bar and Plate Felt - Protects Loads
  • Heavy Duty Reinforced Straps 10 ft. Length
  • Quick Release Safety Locking Cam
  • Super Efficient Drive Screw
  • .65 Kilowatt High Efficiency DC Motor
  • Retractable 2-Wheel Dolly
  • Leverage Bar
  • Sealed Battery 12V 28AMP Maintenance Free and Rechargeable
  • Puncture Proof Wheels 8" Diameter
  • Toeplate 24"W
  • Anti-Skid Protector On Heel Of Machine
  • Lifting Height 40" (101.6 cm)
  • Machine Capacity 1500 lbs. (682 kg.)

STANDARD EQUIPMENT
Model M-1 comes complete with: two strapbars, one 12V sealed long life battery, a battery cover, one two wheel retractable dolly, and one battery charger with auto shut-off and multi voltage feature, and one hook bar leveler.

ACCESSORIES
Hook Box, Cylinder Attachment, Charging Cord, Extended Toeplate - Depth/Width, Skid Plate, Face Plate, Big Wheel Attachment, Horizontal Support Brackets, Load Elevator, Wheel Brakes

LOADING SPECIFICATIONS


Flat Surface Moving
Stair Climbing
Tailgate Lifting

One person
650# 295 kg
450# 204 kg
450# 204 kg

Two people
1500# 682 kg
1000# 454 kg
1000# 454 kg

Above weights are based on qualified operators moving loads that have the weight evenly distributed all along the frame. Refer to the detailed loading specification chart on the back.

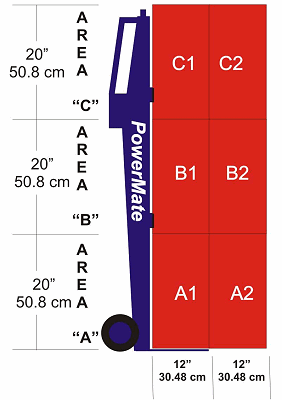

Load Area Drawing
Load Area Drawing
Loading Recommendation Instructions



Steps for matching loads to PowerMate models and the number of trained qualified operators required to move the loads.

  1. Determine the weight of the load to be moved.

  2. Determine where the weight is concentrated in the load. (i.e.  The centre of gravity of the load)

  3. Using the load area drawing, determine in which area (A-1 - through - C2) the centre of gravity is located.

  4. Refer to the safe loading recommendation chart to determine

    1. whether the load can be moved safely on flat surfaces, on stairs, on and off vehicles and on and off loading docks to low bed vehicles.

    2. the number of operators required to safely move the load.

Safe Loading Weight Recommendations In Pounds

Area

Operators Required

M-1
Flat surface moving
Stair climbing
Vehicle and dock loading

A 1

A 2

B 1

B 2

C 1

C 2

1

650
400
400

2

1000
650
500

1

400
250
250

2

800
400
400

1

650
450
400

2

1500
1000
850

1

450
350
350

2

1000
800
800

1

500
450
450

2

800
1000
1000

1

450
400
300

2

750
800
600

Safe Loading Weight Recommendations In Kilograms

Area

Operators Required

M-1
Flat surface moving
Stair climbing
Vehicle and dock loading

A 1

A 2

B 1

B 2

C 1

C 2

1

295
182
182

2

454
295
227

1

182
113
113

2

363
182
182

1

295
204
182

2

682
454
386

1

204
159
159

2

454
363
363

1

227
204
204

2

363
454
454

1

204
182
136

2

340
363
272
