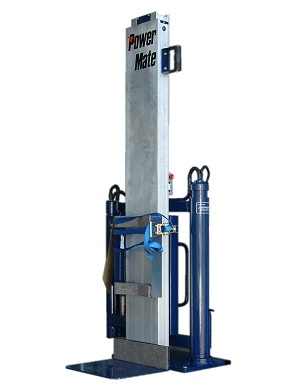

PowerMate® Model #LG-6
- Heavy Duty Steel And Aluminum Frame
- Articulated Arm Movement For Flexible Positioning
- Fully Automatic Braking System
- Super Efficient Ball Screw Drive
- End Stop Override Clutch
- Rocker Switch (Up/Down) Operation
- Gear Reduced Motor
- Operates Using 12 Volt Vehicle Electrical System
- Adjustable Strapbar And/Or Cradle Attachment
- Load Protective Felt
- Heavy Duty Toe Plate
- Overall Weight 216 LBS. (98kg)
|
Model |
LG-6 250 |
LG-6 500 |
||
|
Part Number |
480116 Left Handed |
482116 Left Handed |
||
|
Lifting Height |
1016mm |
40" |
1016mm |
40" |
|
Machine Capacity |
113 kg |
250lbs. |
227 kg |
500lbs. |
|
Toe Plate Swing Distance |
900mm |
35 3/8" |
900mm |
35 3/8" |
|
Front Foot (Excl. Toeplate) W x D |
mm |
inches |
mm |
inches |
ACCESSORIES
Cylinder Attachment c/w Ratchet Strap
Strapbar
